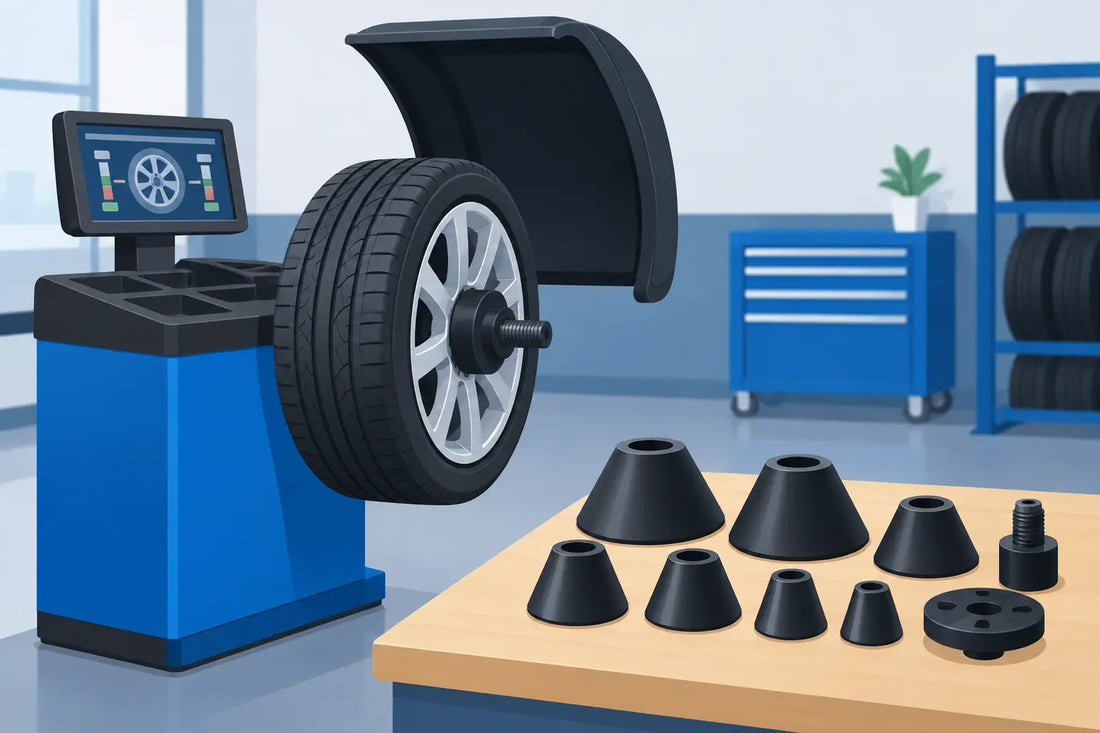

Wheel Balancer Cone Selection Guide for Shops
A wheel can read perfectly balanced and still come back with a highway-speed vibration if it was not centered on the balancer the same way it centers on the vehicle. That is why a proper wheel balancer cone selection guide matters in a working shop. The cone is not just an accessory on the shaft. It is the locating tool that establishes the wheel’s centerline before the balancer measures correction weight.
Using the wrong cone can create a false balance, waste weights, mark a customer’s wheel, and send a technician back to the machine to start over. Selecting the right setup comes down to center bore fit, wheel design, balancer shaft condition, and the type of work your shop sees every day.
Start With the Wheel’s Center Bore
For most passenger-car wheels, the cone centers the assembly by contacting the hub bore. The best cone is the one that enters the center bore cleanly and locates the wheel without excessive play. It should not need to be forced into place, and it should not sit so loose that the wheel can shift as the wing nut or quick nut is tightened.
A cone that is too small allows the wheel to hang slightly off-center on the shaft. The balancer may complete its cycle, but its readings are based on a wheel position that does not match the vehicle hub. The result is often a balance that looks correct on screen yet produces a noticeable vibration on the road.
A cone that is too large is just as problematic. Forcing it into the bore can damage a plastic hub insert, scratch a machined surface, or prevent the wheel from seating squarely against the balancer flange. If the cone is close but not correct, do not make it work. Move to the next size or use a wheel-specific adapter.
The right fit is firm, centered, and repeatable. With the wheel loosely installed, there should be no obvious side-to-side movement at the center bore. Once clamped, the wheel should sit flat against the backing plate or pressure cup without rocking.
Wheel Balancer Cone Selection Guide: Choose the Contact Point
The cone can be installed from the front or rear depending on the wheel and the balancer’s clamping arrangement. What matters is where the cone gives the most accurate, least damaging contact.
On many conventional steel and alloy wheels, mounting from the back with the cone entering the hub bore is the standard approach. The wheel’s back pad seats against the balancer flange, which often best represents how the wheel seats against the vehicle hub. This setup also keeps the cone away from more visible wheel surfaces.
Some wheel profiles require front-cone mounting. Deep-dish designs, reverse-mount wheels, and certain specialty wheels may not allow the rear flange to support the wheel correctly. In these cases, a front cone with the right pressure cup can provide a more stable mounting position. The key is confirming that the wheel is supported squarely, not just held tightly.
Do not assume every alloy wheel should be mounted the same way. Decorative center caps, raised hub features, plastic inserts, and unusual spoke shapes can change where the wheel needs support. Remove the center cap when possible. If it cannot be removed, use an adapter setup that protects it and maintains accurate centering.
Match Cone Range to Your Shop’s Wheel Mix
A standard cone set usually covers a useful range of common passenger and light-truck center bores. That does not mean one cone set handles every wheel your shop will see. Shops that service late-model SUVs, heavy-duty pickups, commercial vans, dually wheels, or aftermarket wheels often need additional cones, truck adapters, or flange plate systems.
Before ordering replacement cones, look at the wheel types that create delays at your balancer. If technicians regularly stack spacers, use a cone that only partly engages the bore, or struggle to clamp a particular wheel family, that is a fitment problem worth correcting. The cost of the right adapter is usually lower than repeated balance work, damaged finishes, or a lost customer.
Large-bore wheels can exceed the range of a standard cone. A larger cone or truck cone may be required, especially on certain light-truck and commercial applications. At the other end, compact-car wheels with smaller bores need a cone that reaches far enough into the bore to center the wheel without bottoming out before the wheel is seated.
Aftermarket wheels deserve extra attention. Their center bores may be larger than the vehicle hub because they rely on hub-centric rings when installed. On the balancer, the wheel still needs accurate bore location. A cone that fits the wheel bore correctly is required even if the vehicle uses a separate hub ring.
Inspect the Cone Before Blaming the Balancer
Cones take abuse. They get dropped, dragged across benches, overtightened, and used on wheels they were not designed to handle. A worn cone can be the hidden cause of inconsistent balance results.
Check the tapered surface for grooves, flat spots, burrs, corrosion, or chipped coating. Even minor damage can keep the cone from making uniform contact with the wheel bore. Inspect the cone’s center hole as well. If it is worn or distorted where it rides on the balancer shaft, the cone may not run true.
Cleanliness matters more than it sounds. Rust scale, wheel weights, dirt, and old adhesive on the wheel’s mounting surface can prevent proper seating. Wipe the cone and balancer flange before mounting. If a wheel comes off a vehicle with heavy corrosion around the hub bore, clean that bore enough to establish a reliable contact surface before balancing.
Also inspect the balancer shaft, threads, quick nut, pressure cup, and backing flange. A perfect cone cannot compensate for a bent shaft, worn quick nut, damaged spring, or flange that has accumulated debris. If your readings change when a wheel is removed and remounted, test the mounting hardware before recalibrating the entire machine.
Use the Correct Pressure Cup and Clamping Force
The cone centers the wheel, but the pressure cup and quick nut hold it in position. A cup that contacts only a narrow, uneven, or cosmetic surface can tilt the wheel as it is tightened. This is especially common with alloy wheels that have a recessed center, a large cap opening, or a raised design around the lug area.
Choose a pressure cup that spreads clamping force across a stable area without contacting a fragile center cap or decorative finish. The wheel should be pulled straight against the flange. If the cup is bottoming out, touching the cap, or sitting crooked, change the setup.
Tightening harder is not the fix for poor fitment. Excessive force can distort plastic components, damage the quick nut, and make it harder to recognize that the wheel was not seated correctly in the first place. Tighten securely according to the balancer’s normal procedure, then spin the wheel by hand and watch for wobble before starting the cycle.
When a Flange Plate Is Better Than a Cone
Cones work well when the center bore is a reliable reference point. Some wheels are better balanced using a lug-centric flange plate or pin plate. This is particularly true when the wheel’s center bore is damaged, oversized, non-standard, or not the primary locating feature on the vehicle.
A flange plate simulates the way the wheel mounts through its lug holes. It takes longer than a basic cone setup, but it can eliminate repeat-balancing problems on difficult wheels. It is often the better choice for certain OE wheels, specialty wheels, and wheels with bore conditions that make cone centering questionable.
This is a trade-off between speed and accuracy. A cone is the fastest choice for the majority of routine work when it fits correctly. A flange plate earns its place when a wheel has already produced inconsistent results or when the wheel design clearly calls for lug-hole location.
Verify the Setup With a Repeatability Check
When a balance result does not make sense, do not immediately add more weight. Remove the wheel, rotate it on the shaft, remount it using the same cone and clamping method, and run it again. If the readings change significantly, the issue may be mounting repeatability rather than tire uniformity.
A good mounting setup produces consistent readings across remounts. If it does not, check cone fit, flange contact, cup contact, shaft condition, and debris before diagnosing the tire or wheel. This quick test saves time and keeps technicians from chasing a problem with unnecessary weights.
For persistent vehicle vibration, balance is only one part of the job. Check wheel runout, tire runout, bead seating, wheel damage, hub corrosion, lug torque, and suspension condition. A correctly selected cone gives the balancer a trustworthy starting point, but it cannot correct a bent wheel or a tire with a force variation issue.
Keep your cones organized by size and inspect them as part of normal balancer maintenance. The right cone is a small part of the setup, but it has a direct effect on comeback rates, weight use, and the quality of every balance leaving your bay. When a wheel will not center correctly with the equipment in front of you, stop before the spin cycle and get the mounting method right.
