Collection: Parts List

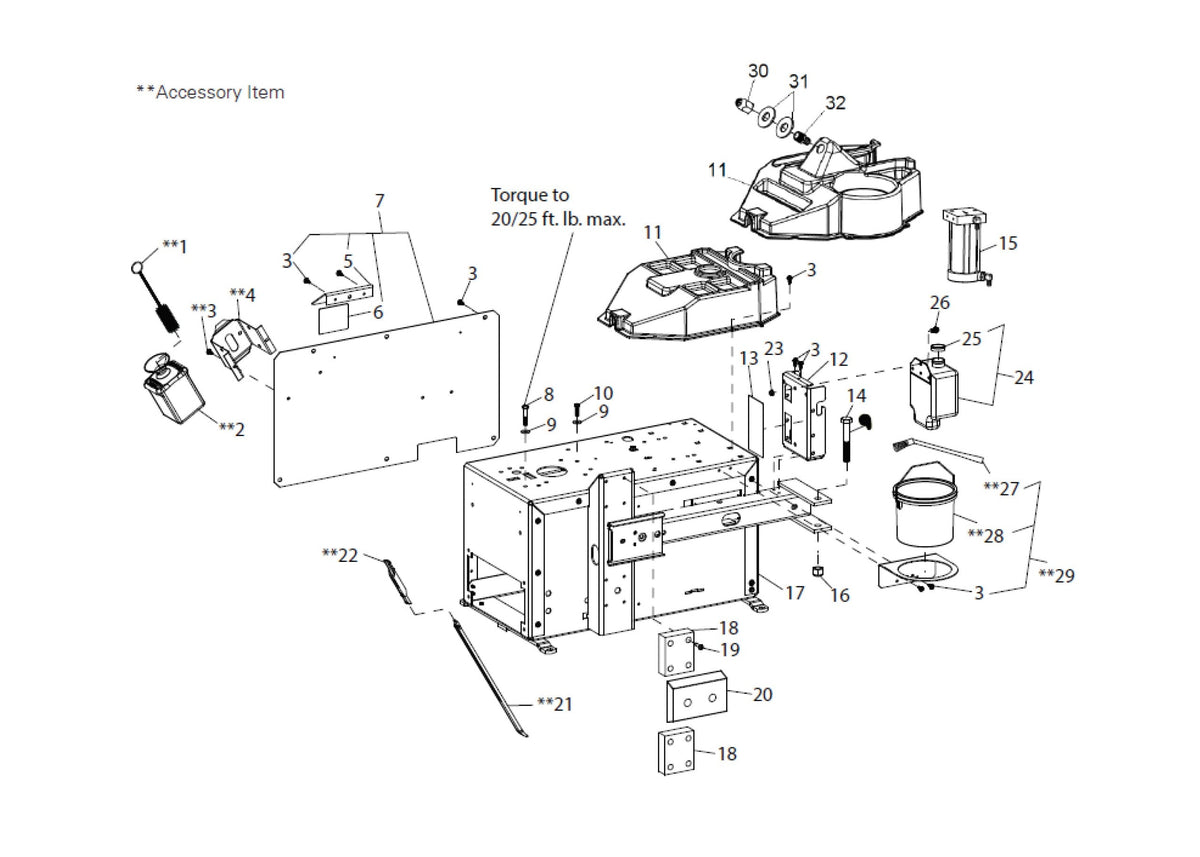

1 Lube Applicator
2 Lube Bottle (Red)
3 1/4" Hex Hd Self Tap Screw
4 Lube Bottle Bracket
5 Inflation Pedal Cover
6 Inflation Pedal Decal
7 Metal Side Panel
8 M10-1.5 x 55MM Hex
9 3/8 Flat Washer, Zinc Plate
10  3/8-16 x 1-1/4 Hex Hd.
11 Plastic Accessory Tray
12 Lubricator Bracket
13 Lubrication Notice Decal
14 3/4 x 3-1/2 Screw
15 Water Separator Assy
16  5/8-11 Hex Nut
 17 Chassis
18 B.L. Pad, Front
19 5/16-18 x 1-1/4 Screw
20 B.L. Center Pad
21 Bead Lifting tool
22 Lift Tool Bootie Kit, Pkg of 10
23 312-18 Hex Flange Nut
24 Tank Reservoir w/Cap
25 Tank Reservoir Cap
26 5/16-18x5/8 Screw
27 Tire Paste Brush
28 Universal Mounting Paste
29 Lube Bucket Bracket & Brush Kit
30 Inflation Nozzle Cone
31 Washer
32 3/4” Straight Fitting

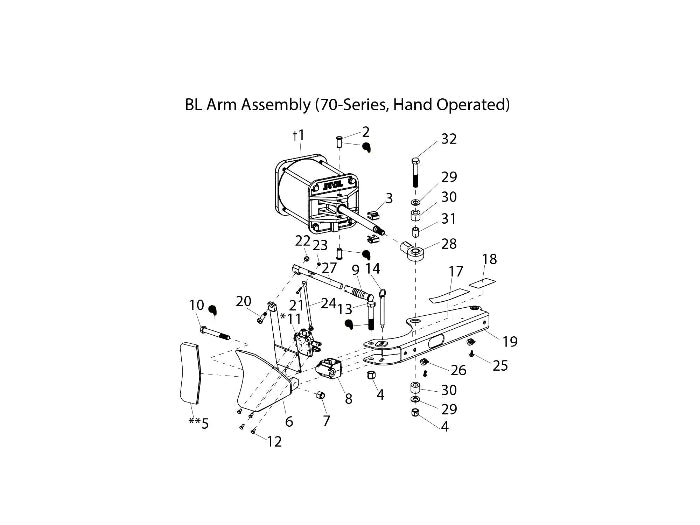

 1 BL fitting
 2 Clevis Pin
 3 Clevis Clip
 4 Nylon Insert Lock Nut
 5 Shoe Bootie
 6  B.L. Shoe, Handle & Pivot W/C
 7 5/8-11 Nylon Insert Lock Nut
 8 Shoe Pivot Bracket
 9 3/4", Rubber Hand Grip
10 5/8-11 x 5" Hex Scr
11 B.L. Arm Valve Assembly
12 1/4-20 x.504
13 3/4-10 x 3 3/4"
14 1/2" Hitch Pin
15 B.L. Spring
16 Pivot Pin
19 B.L. Arm
20 Shoulder Screw
21 10/24 x 1” HHCS Screw
22 3/8-16 Hex Nyloc Nut
23 10-24 Nylon Insert Lock Nut
24 Lever Link
25 1/4” Hex Hd Self Tap Screw
26  Neoprene Cushion Clamp
27 B.L. Lever Assembly
28 Heim Joint
29 Washer
30 Spacer
31 Spacer
32 Screw

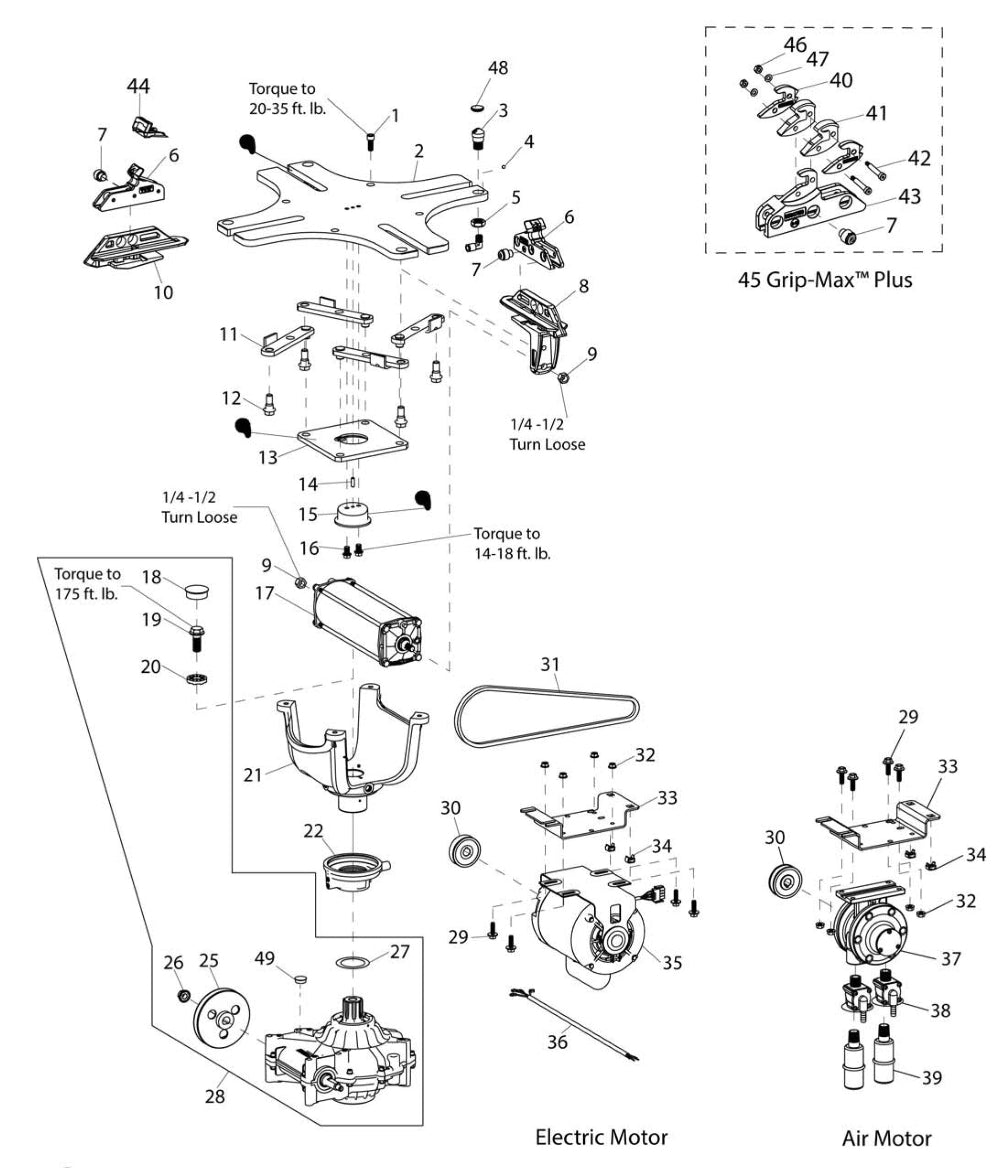

1 3/8-16 x 1”,C Scr.
2 Table Top Plate
3 Inflation Nozzle
4 1/4" Steel Ball
5  3/4" Jam Nut
6  Adjustable Rim Clamp
7 Adj. Clamp Plunger/Spring Assy.
8 Carrier/Cover - Cylinder End
9 1/2" Lock Nut, Gr.5
10 Carrier/Cover - Clamp Adj.
11 Pivot Link W/C
12 Clamp Link Bolt
13 Table Top Pivot Plate
14 1/4" x 3/4" Roll Pin
15 Pivot Block
16 5/16-18 x 5/8"Whiz-lock
17 Table Top Cylinder Assembly
18 1-5/8” Dia. Cap Plug
19 16MM x 40mm Hex Head Bolt
20 16mm Molded Washer
21 Spider Assembly
22 Rotary Coupling Assembly
25 Transmission Pulley
26 1/2-13, Hex. Whiz-lock Nut
27 2" X ø2 3/4" x .010 Washer
28 Transmission Kit
29 5/16-18 x 1 Ser. Wash.Hd
30 Motor Pulley
31 Motor V-Belt
32 8182178 5/16-18, Hex. Whiz Lo...Nut
33 Motor Mounting Bracket
34 Tinnerman Sq. Captive Nut 3/8-16
35 Motor, Electric 115V
36   Motor Cable Assy
37 Air Motor, Gast. 6AM
38 Exhaust Valve
39 1/2" NPT Muffler
40 3-position Laminated Clamp Cover
41 Laminated Clamp Plus Grip
42 1/4 x 1-1/4 x #10-24 Shoulder Screw
43 3-position Laminated Clamp Plus
44 Bootie Kit, Rim Clamp, Pkg of 10
45 Grip Max Plus™, Laminated
Clamps, Pkg. of 4
46 #10-24 Rvsble Hex Lk Nut
47 #10 Washer
48 Hole Plug (Table w/o Inflation Jets)
49 Transmission Hole Plug

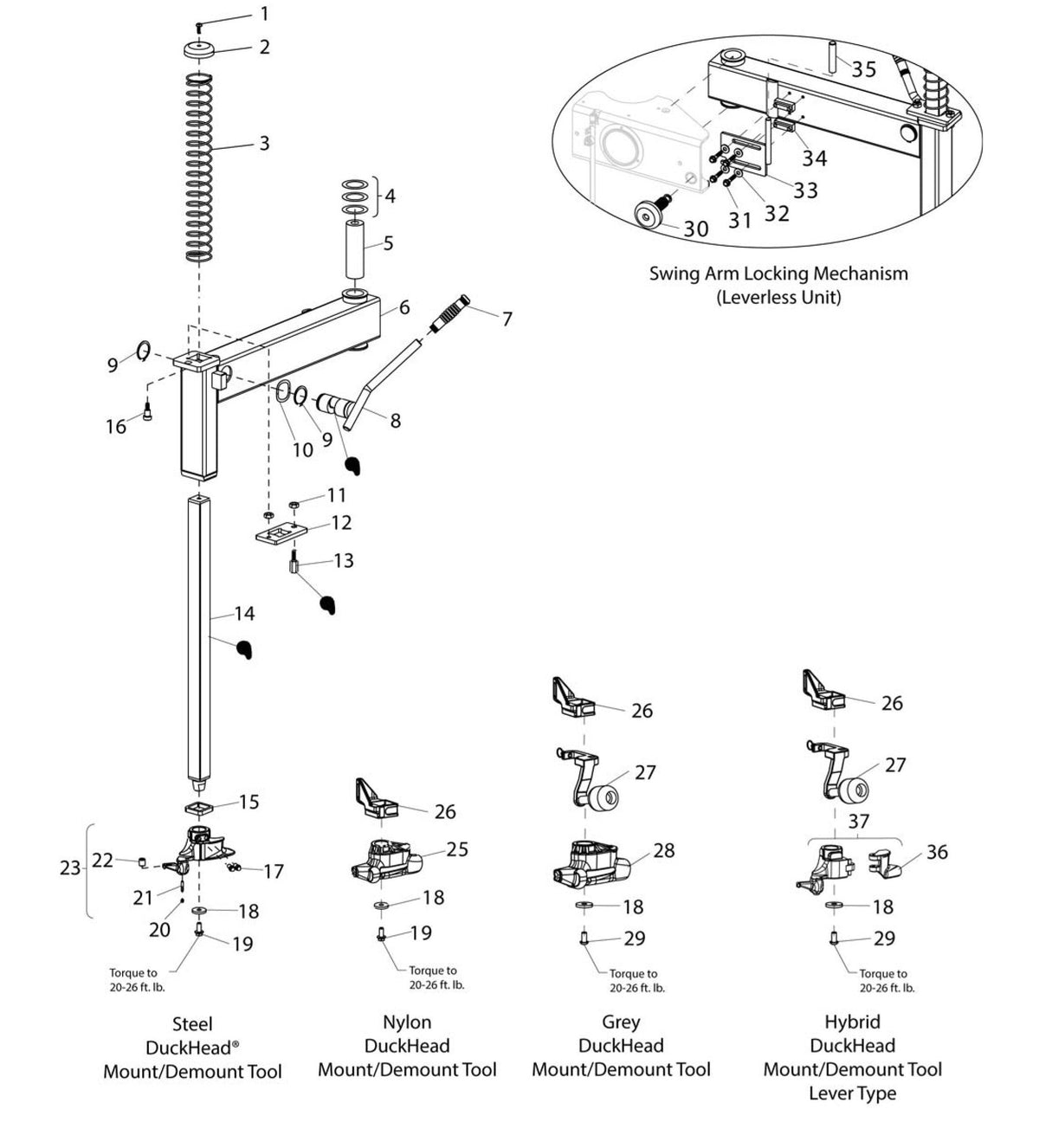

1  5/16-18 x 0.75 SBHCS, Gr.8
2 Vertical Slide Knob
3 Vertical Slide Spring
4 Swing Arm Shim Kit
5 Swing Arm Pivot Pin
6 2 Swing Arm, for R.H. Cam Lock
7 Handle Grip, Black Flex 3/4 I.D.
8 Lock Handle/Lift Cam W/C, R.H.
9 1-5/8 Snap Ring
10 5/8 Dia. Wave Washer
11 1/2"-13 Jam Nut, Gr. 5
12 Lock Plate
13 Lock Plate Lift Pin
14 8182812 Vertical Slide Shaft
15 8182031 Rubber Bumper
16 85606344 1/2 x 5/8 Shoulder Screw
17 8182813 3/8-16 x 3/4" Ctr Bore C scr
18 7 ga. x .406 ID x 1.28 OD Washer
19 3/8" Whiz Lock Screw, Gr.5
20 8140667 1/4-20 x 1/4 Hd.Set Scr,
21 5MM x 25MM Dowel Pin
22 0.562 Diameter x 0.515 LG. Roller
23 Metal duck head
25 Duckhead Mount/Demount
26 Roller Mount
27 Bead Roller (Duckhead)
28 Duckhead (Grey)
29 3/8-16 x 0.750 SBHCS Screw
30 Adjusting Lock Knob
31 5/16-18 x 1-1/2 Screw,
32 5/16" Plain Washer
33 Lock Assembly
34 Lock Block
35 1/2 x 3 Handle Grip
36 Hybrid Duckhead Tail
37 Hybrid Duckhead Mount/Demount
Tool Lever Type
38 Manual Bead Depressor

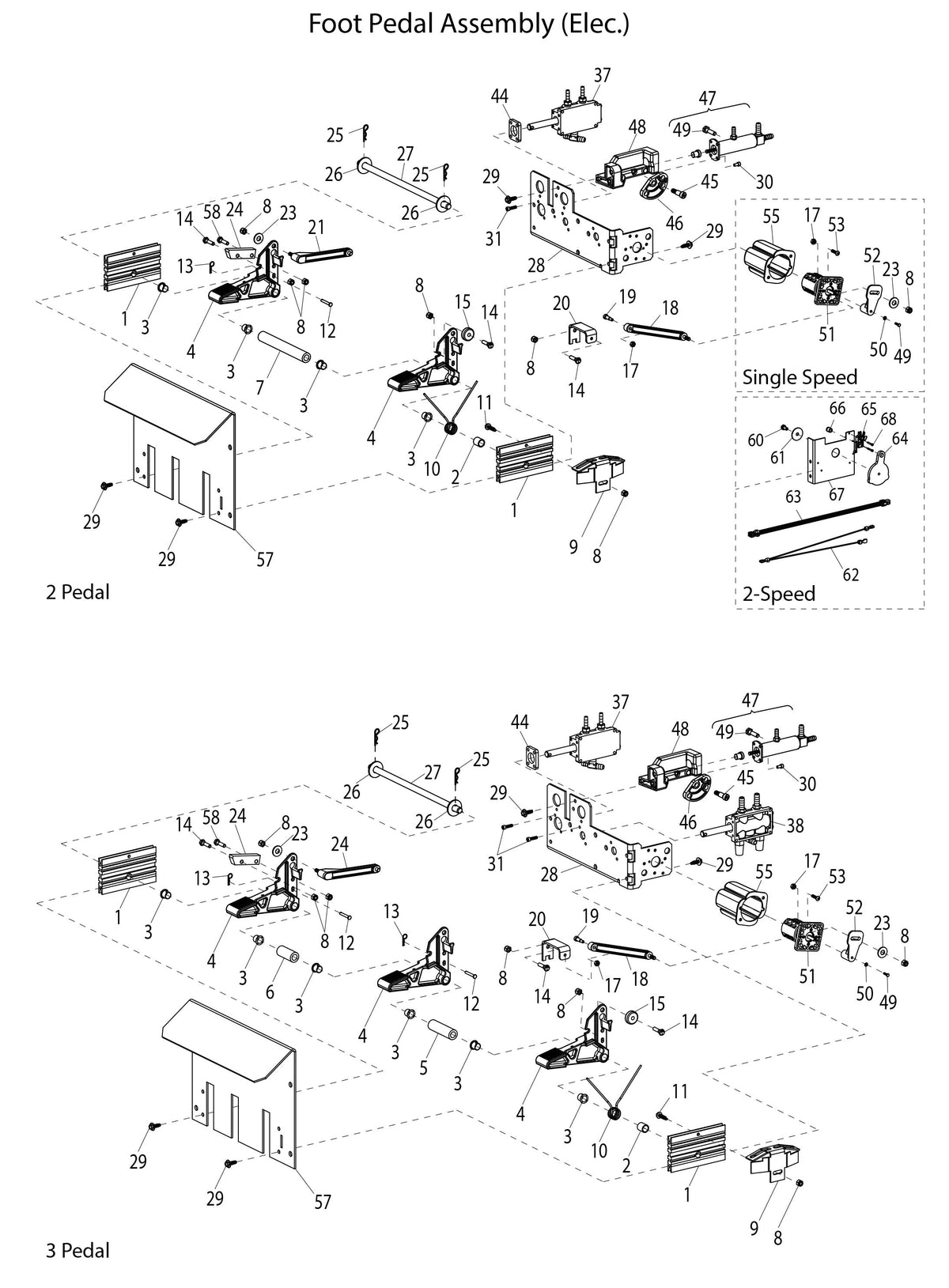

1 Valve Brkt. Spacer Bar
2 Torsion Spring Sleeve
3 1/2" Nylinder Bearing
4 Standard Pedal
5 Pedal Spacer
6 Pedal Spacer
7 Pedal Spacer
8 1/4-20 Lock Nut, Nyl.
9 Spring Stop Bracket
10 Torsion Spring
11 1/4 x 1
12 3/16" x 1-1/2" Clevis Pin
13 Hair Pin Cotter
14 1/4-20 x 1"
15 Stop Washer
17 10-24 Nylon Insert Lock Nut Gr.5
18 Lever Assembly - Switch
19 10-24 x 3/8
20 Spacer - Sw Pedal Lever-Red
21 Cam Lever Follower
23 5/16" Flat Washer
24 Pedal Stop
25 Hair Pin Cotter
26 Washer
27 Pedal Shaft
28 Valve Mounting Bracket
29 1/4" Hex Hd Self Tap Screw
30 10-24 x 3/8
31 10-24 x 3/4
37 Valve Assembly
38 Valve Assembly
44 Spacer-Valve, Clamp, TT
45 5/16-18 x 1/2 Screw
46 Pivot Link
47 Oil Injector Assembly
48 Block-Lower Stop Pedal
49 Release Valve
50 #6 Internal Tooth Lk Washer
51 Reversing Switch, Kit
52 Switch Actuator Lever
53 10-24 x 5/8
55 Cover-Switch
57 Guard-Foot Pedal
58 Clevis Pin
59 Release Valve
60 1/4-20 x.504
61 1/4" Heavy Fender Washer
62 2-Speed, 2-Wire Harness
63 2-Speed, 4-Wire Harness
64 Disk Switch
65 Foot Pedal Switch
66 1/4-20 Allen Nut
67 2-Speed, Switch Plate
68 #4-40 x 3/4 Lg. SHC Screw
